WOW Conditioning Sheet (Mold Conditioner) Series
$20.00
Share this Product:

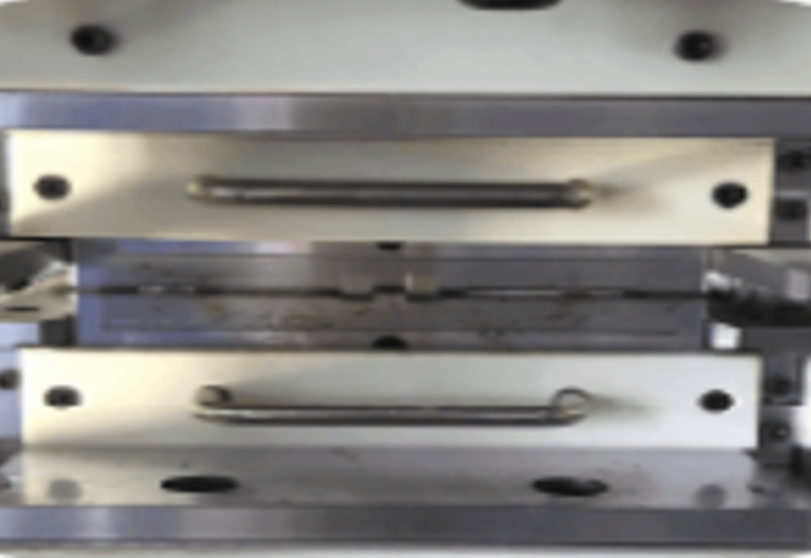

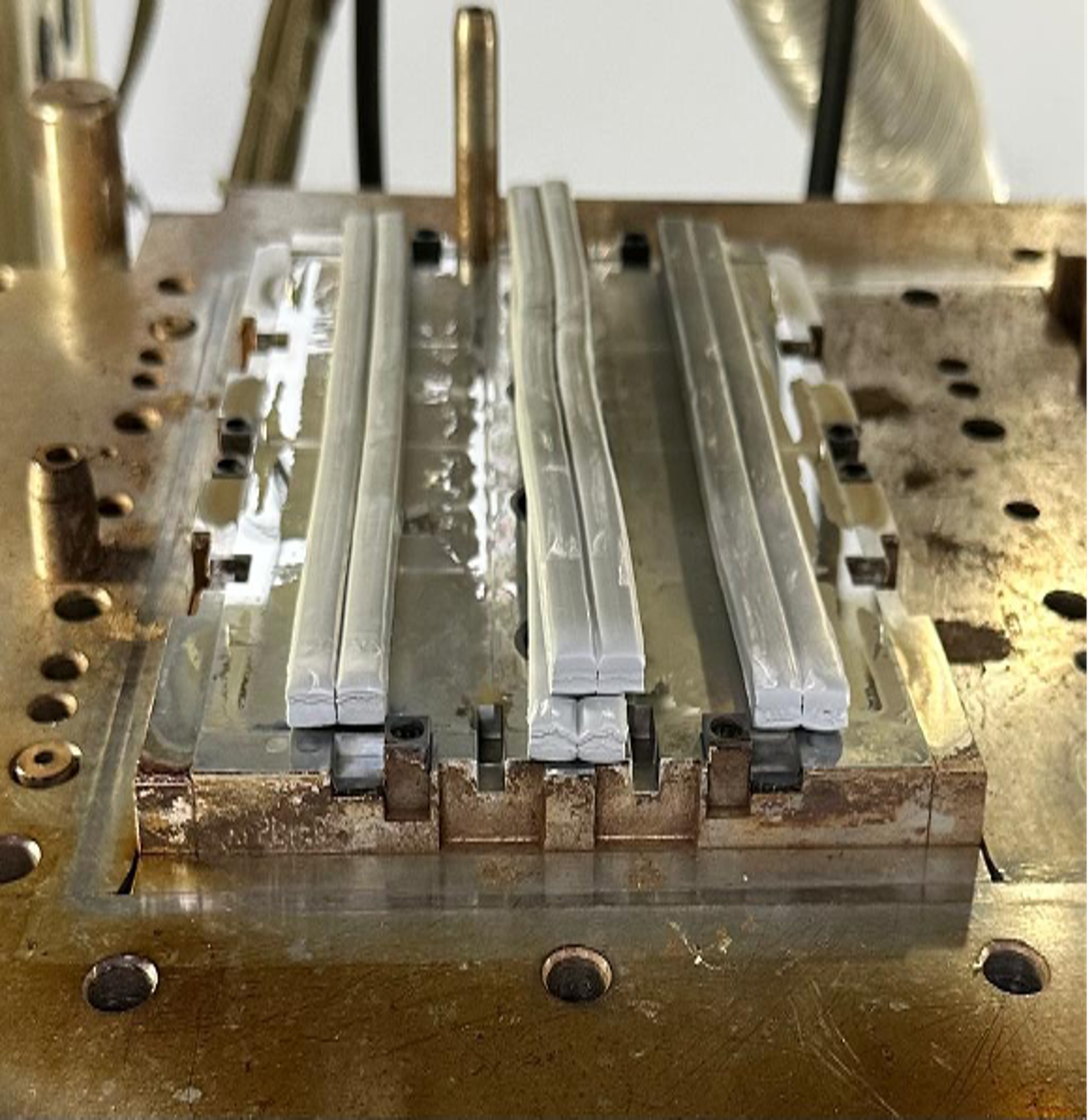

Load the conditioning sheet on the mold chase
Close the mold chase and cure the cleaning sheet through heated compression
Repeat process 1-2 times as required
| Grade | Appearance (Color) | Min. Torque (lb-in) | Max. Torque (lb-in) | Curing Time (Sec.) | Recommend Shots (No.) | Specific Gravity (g/cc) | Fume Time (sec.) |
|---|---|---|---|---|---|---|---|
| WOW -7000 Series | Grey | 2~4 | 15~20 | 120 ~ 400 | 1~2 | 1.2 | Negligible |
| WOW – 8000 Series | Grey | 2~4 | 18~23 | 120 ~ 400 | 1~2 | 1.18 | Negligible |
| WOW – 9000 Series | Grey | 3~5 | 32~37 | 120 ~ 400 | 2~3 | 1.2 | 30~40 |
| Rubber Conditioner (WOW series) | |
|---|---|
| Appearance | Grey |
| No. of Shots | 3-5 |
| Sheet Dimension (Dimensions may by customized according to Customer’s needs) | Length: 150-300mm
Thickness: 5-10mm *Special Thickness: 2-4mm |
| Mold Temp ( C) | 130-230 |
| Mold Press (KG f/cm^2) | 15-150 |
| Curing Time (Sec) | 120-500 |
| Storage & Packaging | Product are ideally stored at temperatures of 5 C or below
Caution to avoid storing at locations with temperature over 30 C or under direct sunlight Products should be ideally stored in PE Bags, 10kgs net in a carton box |
| Shelf-life | Product have a stored at:
5 C or below: 12 months from manufacturing date Room temperature: 3-6 months from manufacturing date |
| Storage & Packaging | Allow the rubber cleaning sheet to acclimate to room temperature for at least 30 minute prior to use
Use the product in a well-ventilated area and with an appropriate ventilation system Avoid direct skin contact with the hot-cured rubber sheet Ensure safety protocols and protective measures are in place during handling |
